Platform Capacity

Trade Approved  ( Approval 1461.17) to 1500 kgs @ minimum of 0.5kg and 3000kgs @1.0 kgs

Non Trade Approved in excess of 3000kgs

Dimensions: 1200 x 1200mm Square

Note: The colour is grey/green not blue as depicted in brochure

Includes fixed position wall mounting bracket ( if needed)

Home run cable is approx.  3m (please advise if different length required)

The platform scale can be paired with one of the following:

A) Adam Equipment GK-M indicator Trade approved. Not recommended for outside use or in wet conditions as it has a plastic body.  It has no IP rating.

B) Bilanciai D70ES Trade Approved ( has no battery unlike the GKM). Stainless steel body ( more robust and best for outdoor use as it is fully stainless). IP 66 rated.

C) Iconix  44 Trade Approved Indicator up to 3,000 divisions. Iconix is commonly used  in the animal weighing industry. Comes with battery operation. IP 56, not recommended for outdoor or wet conditions

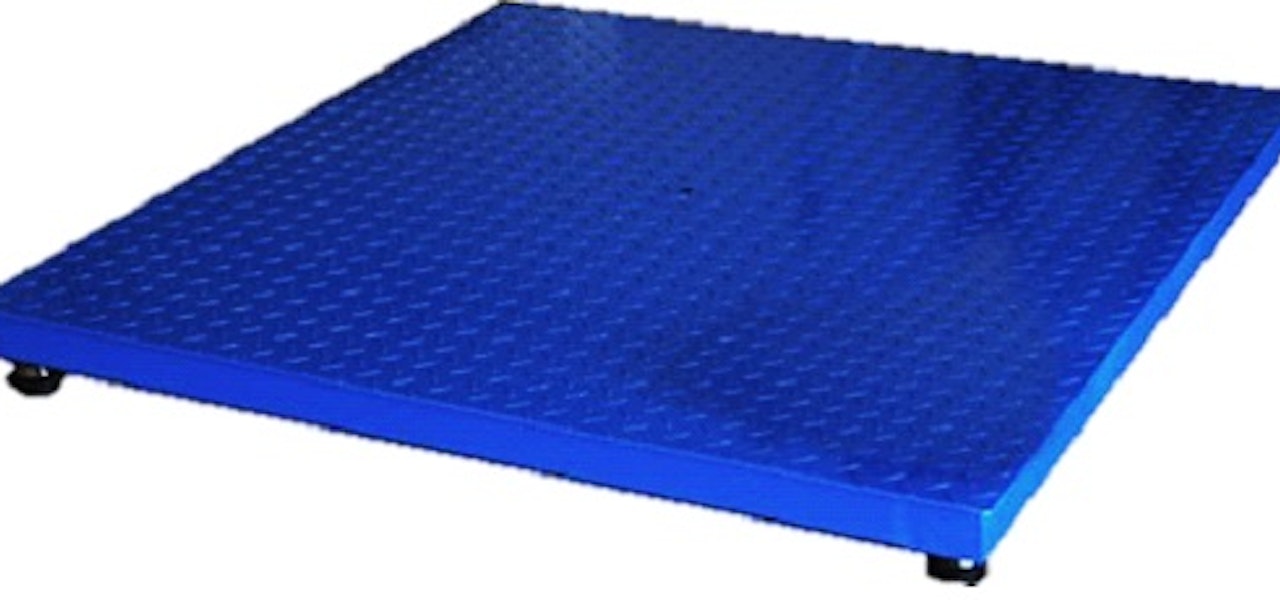

TS4100 Platform Scale

• Up to 5T load capacity
• Add your own Indicator – ADAM GKM, Iconix LC44 or Bilanciai D70ES
• Mild steel structure, powder-coated finish
•  Zemic load cell type fitted
• 1200mm x 1200mm Square
• Adjustable Feet
• Ramps also available by request
• Indicator includes fixed position wall mounting bracket
• Home run cable approx. 3 metres.
• Cert of Accuracy included
